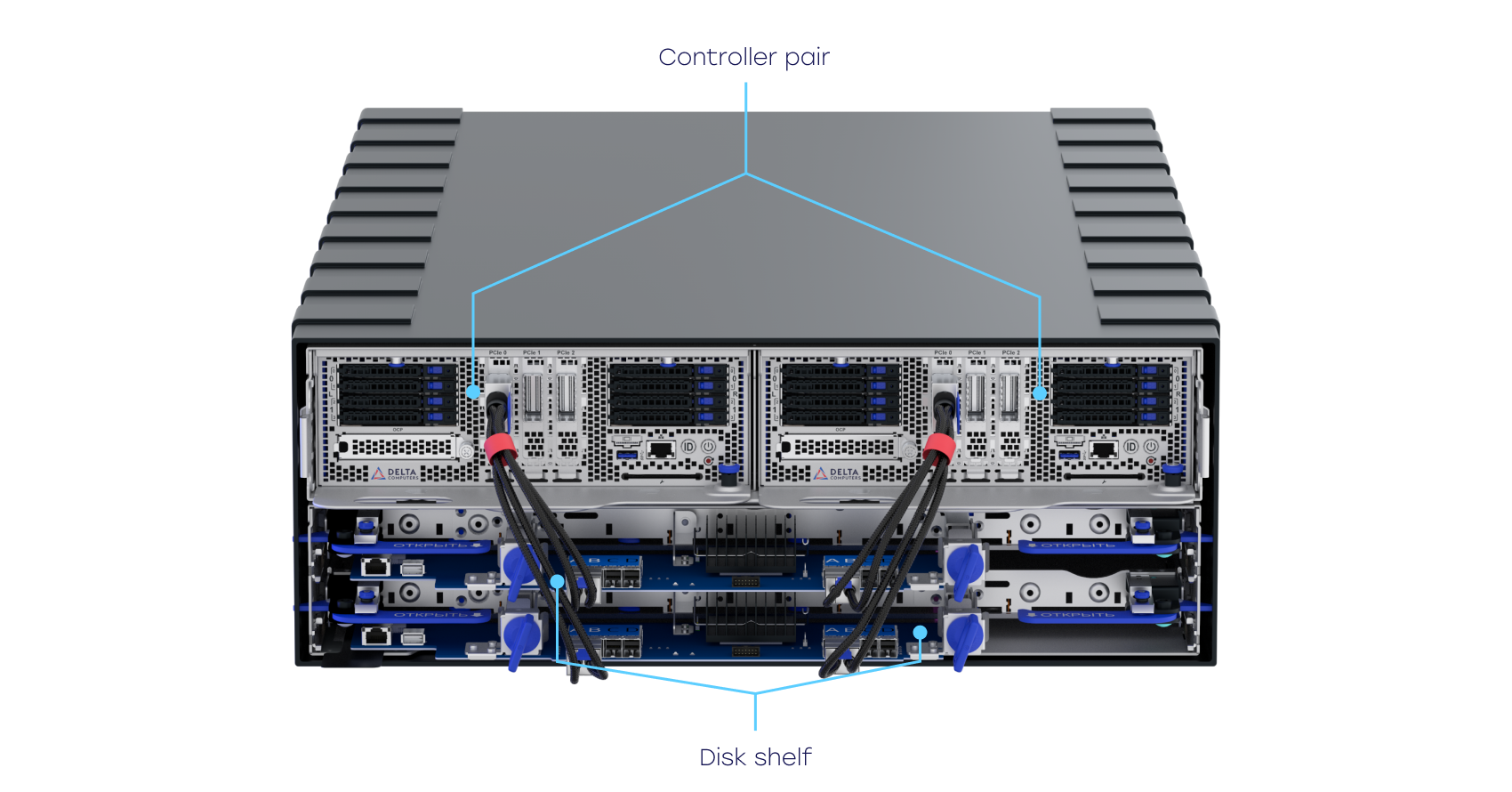

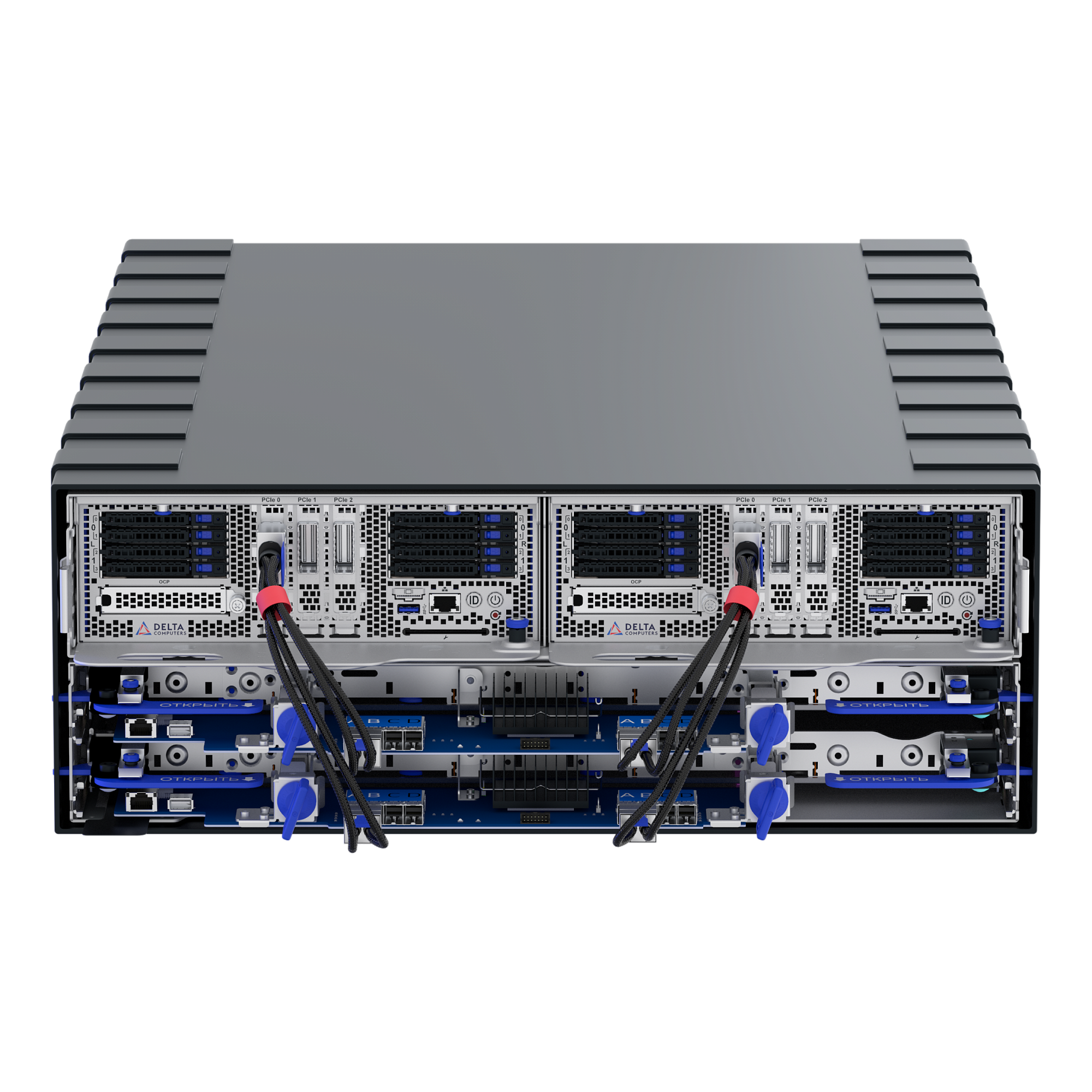

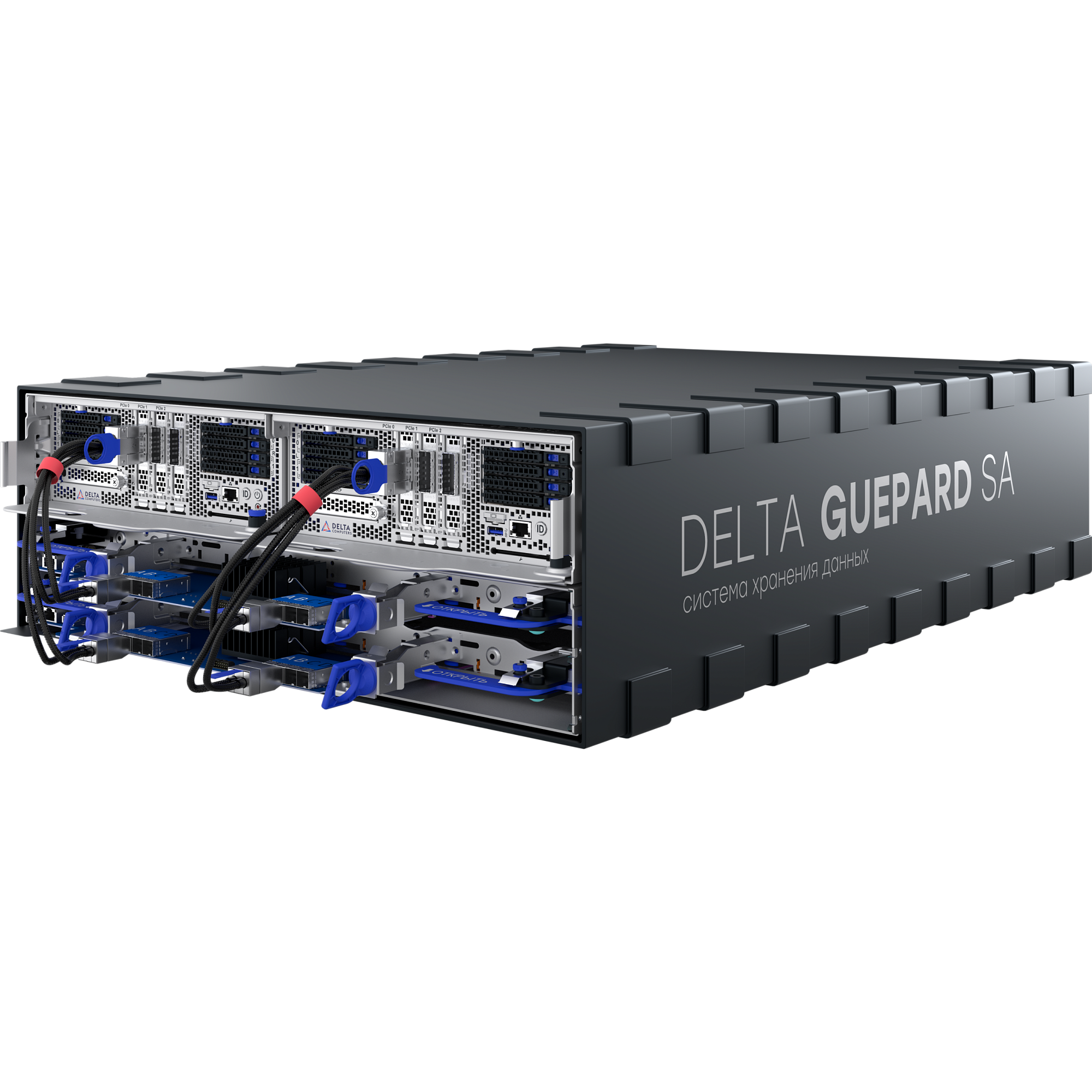

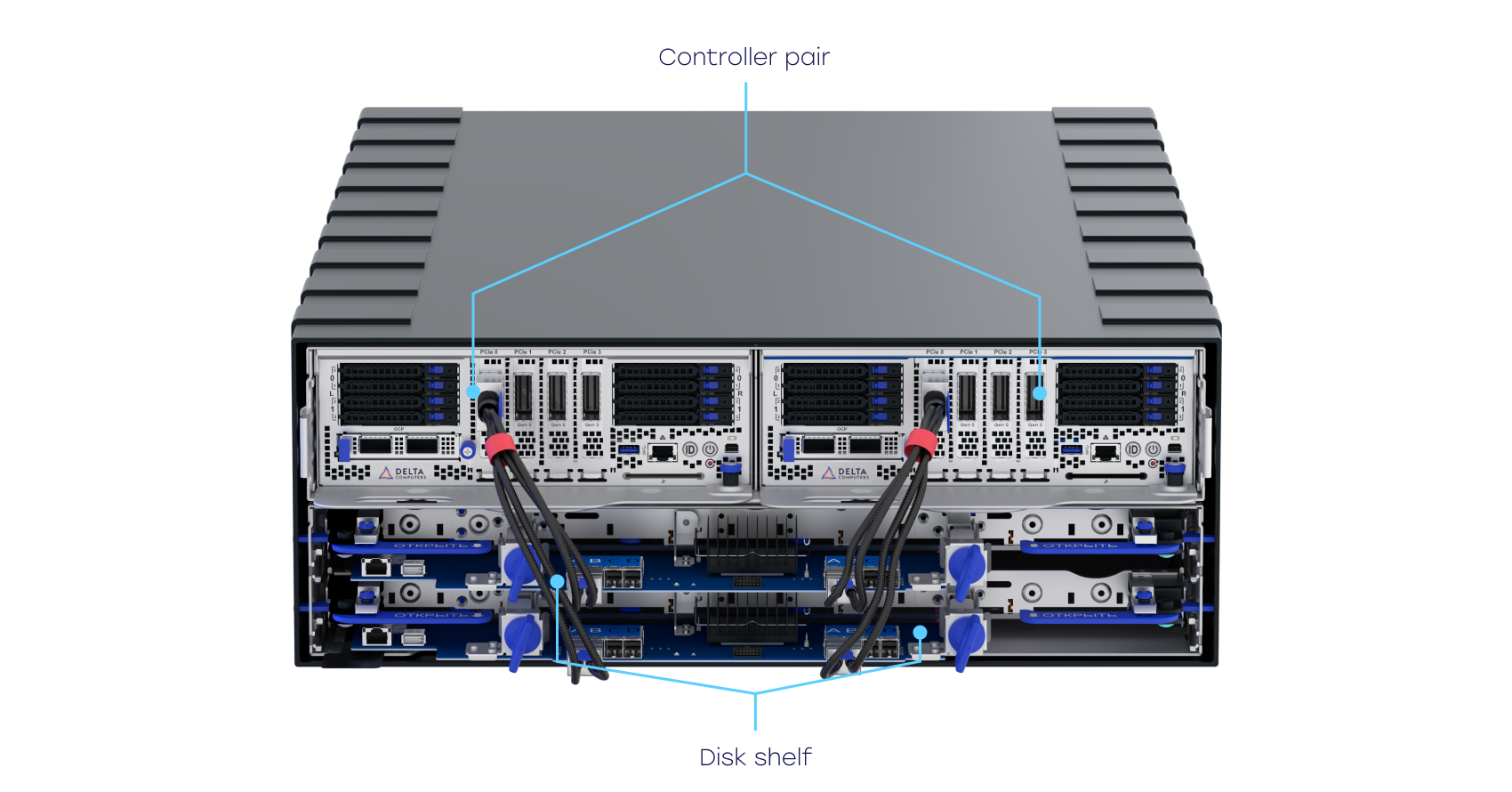

Delta Guepard SA

Russia's first mid-range OCP data storage system, delivering balanced performance for a wide range of workloads

Description

Delta Guepard SA is a universal data storage system that solves most of the current tasks in modern IT infrastructure. Delta Guepard SA combines modern 4th and 5th generation Intel Xeon Scalable processors and Dual Port U.2 NVMe SSD Gen4, allowing it to handle tasks that require high performance, flexibility, scalability, and fault tolerance.

Specifications

Dual-controller Active-Active ALUA configuration
Capacity for up to 120 U.2 NVMe SSD Gen4 2.5" drives
Wide range of 4th and 5th generation Intel Xeon processors available for installation
Flexibility in memory module specifications, up to 8 TB DDR5 RDIMM ECC per controller
Maximum memory module speed up to 5600 MT/s
Maximum data transfer rate up to 200 GB/s
Hot-swappable disks and fans
Block protocol support: Fibre Channel, InfiniBand, iSCSI
Support for file protocols: SMB, NFS over RDMA, AFP, FTP
Supported RAID levels: 0/1/5/6/10/50/60/70
Integration with AD/LDAP
Support for SNMP, SMTP
Monitoring and management in the Delta BMC and Delta Sokol systems

Scalability

Up to 120 NVMe drives U.2 NVMe SSD Gen4

Performance

Up to 3 million IOPS

Composition

Application scenarios

DBMS and mission-critical applications

All-Flash architecture and NVMe drives are ideal for modern DBMS, where the key requirements are maximum I/O operations per second and minimum transaction processing latency

File storage

Support for standard file protocols, integration with AD/LDAP, and high throughput ensure seamless and efficient file handling for all users

Virtualization

Centralized, high-performance NVMe storage handles mixed workloads, making it the optimal choice for virtualization tasks

VDI

Meets all modern requirements for deploying virtual desktop infrastructures

Hot data storage

Delta Guepard SA uses cutting-edge technologies to ensure fast access to stored data

Transaction systems

Ensuring maximum performance, minimal response latency, and uninterrupted fault tolerance for mission-critical systems

Advantages

Enterprise-grade reliability

A complete fault-tolerant architecture with redundancy of all critical components - controllers, power supply and cooling modules.

Scaling options

Delta Guepard SA can have a total volume of up to 2.4 PB, which makes it possible to scale to meet the needs of the most demanding applications.

Intuitive monitoring and control system

Monitoring and control are carried out using and which allows you to efficiently and quickly administer large-scale installations based on Delta Computers products
