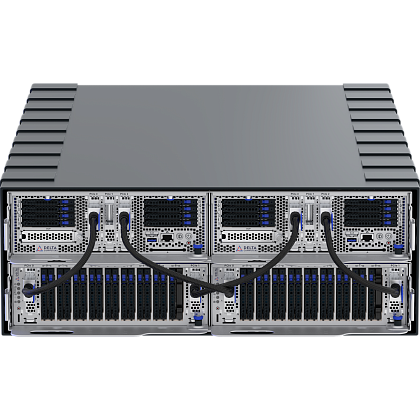

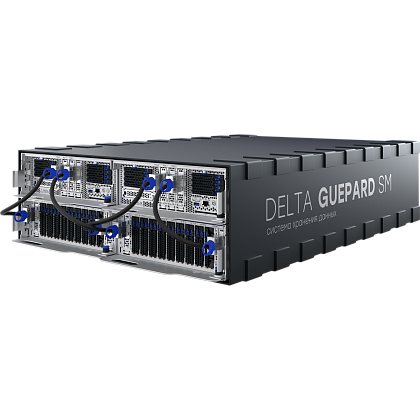

Delta Guepard SM

Russia's first mid-range OCP data storage system, delivering balanced performance for a wide range of workloads

Description

Delta Guepard SM is an all-flash storage system that provides high-speed transfer and minimal latency when accessing stored information. Delta Guepard SM is designed for use in a wide variety of scenarios, from virtualization and DBMS to big data analytics and artificial intelligence. The use of 5th generation Intel Xeon processors and Dual Port U.2 NVMe SSD Gen5 in the data storage system architecture allows this storage to be used in tasks with the highest requirements for speed, reliability, and fault tolerance.

Specifications

Dual-controller Active-Active ALUA configuration
Up to 68 U.2 NVMe SSD Gen5 drives can be installed
Wide range of 5th generation Intel Xeon processors available for installation
Flexibility in memory module specifications, up to 8 TB DDR5 RDIMM ECC per controller
Maximum memory module speed up to 5600 MT/s
Maximum data transfer rate up to 200 GB/s
Hot-swappable disks and fans
Block protocol support: Fibre Channel, InfiniBand, iSCSI
Support for file protocols: SMB, NFS over RDMA, AFP, FTP
Supported RAID levels: 0/1/5/6/10/50/60/70
Integration with AD/LDAP
Support for SNMP, SMTP
Monitoring and management in the Delta BMC and Delta Sokol systems

Scalability

Up to 68 NVMe drives U.2 NVMe SSD Gen5

Performance

Up to 6 million IOPS

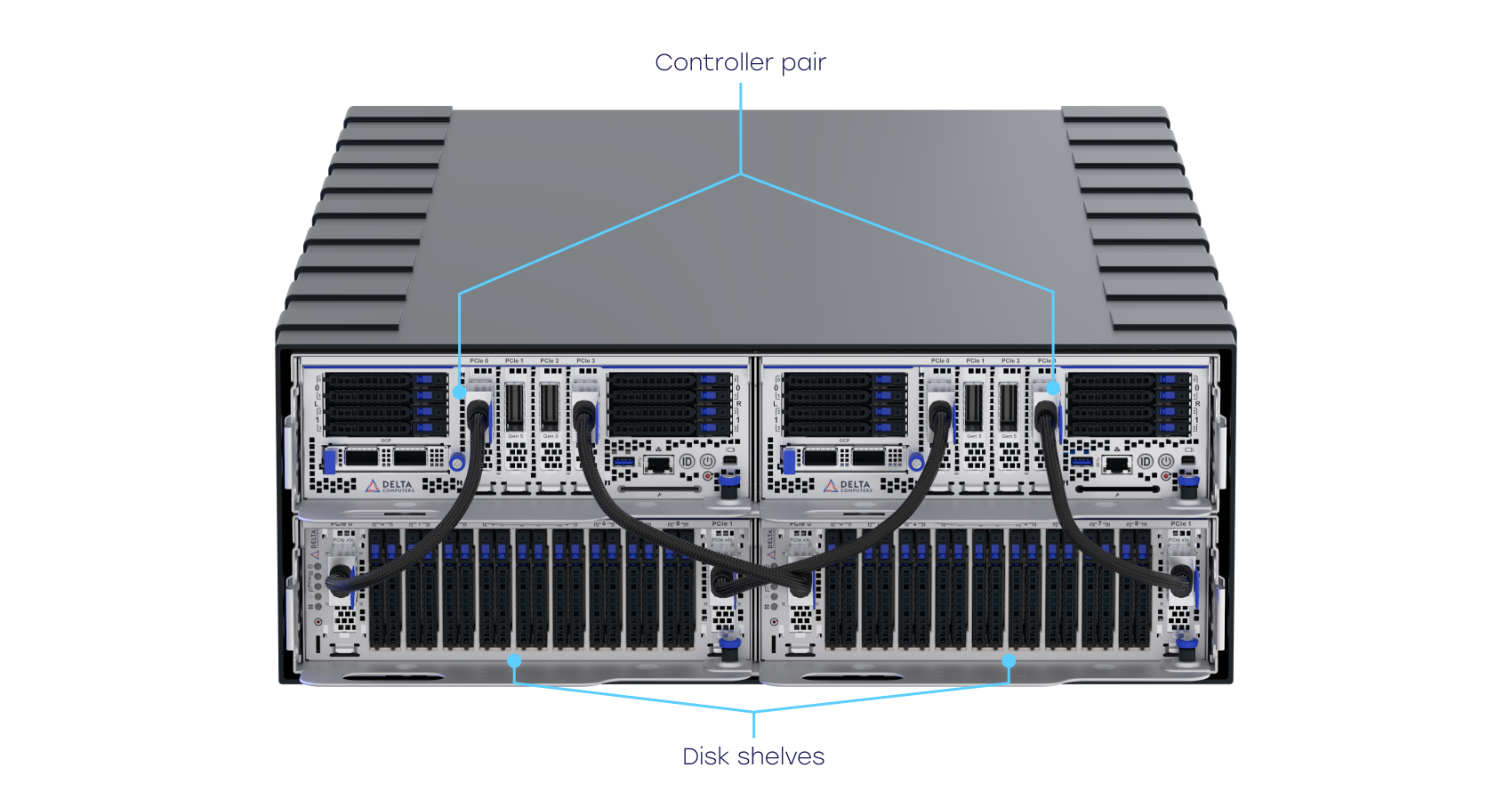

Composition

Application scenarios

Cloud computing

Using Delta Guepard SM boosts virtual machine performance and provides fast access to data

Industry applications

Delta Guepard SM provides high-speed access to block data and minimal latency for transactional databases

Big data and analytics

In the field of large-scale data processing and complex analytical calculations, Delta Guepard SM allows you to speed up data analysis processes through the use of advanced storage technologies

File storage

High-speed NVMe storage, universal network integration, and record-breaking throughput enable instant analysis of big data, accelerating strategic decision-making

Virtualization

Centralized, high-performance NVMe storage handles mixed workloads, making it the optimal choice for virtualization tasks

Hot data storage

Delta Guepard SM uses advanced technologies to ensure fast access to stored data

Advantages

Unrivaled performance

Using advanced technologies, Delta Guepard SM shows excellent results when working in highly loaded IT environments.

Versatility and consolidation

A single platform for all types of workloads. Simultaneous work with block and file protocols provides high technological flexibility and allows customers to significantly reduce IT infrastructure costs.

Intuitive monitoring and control system

Monitoring and control are carried out using and which allows you to efficiently and quickly administer large-scale installations based on Delta Computers products
