Delta Marlin
High speed disk system
Description
Delta Marlin is a high-density disk system supporting NVMe drives. The platform can be used both as an expansion of server disk storage and as a part of high-speed software-defined data storage systems.
Specifications

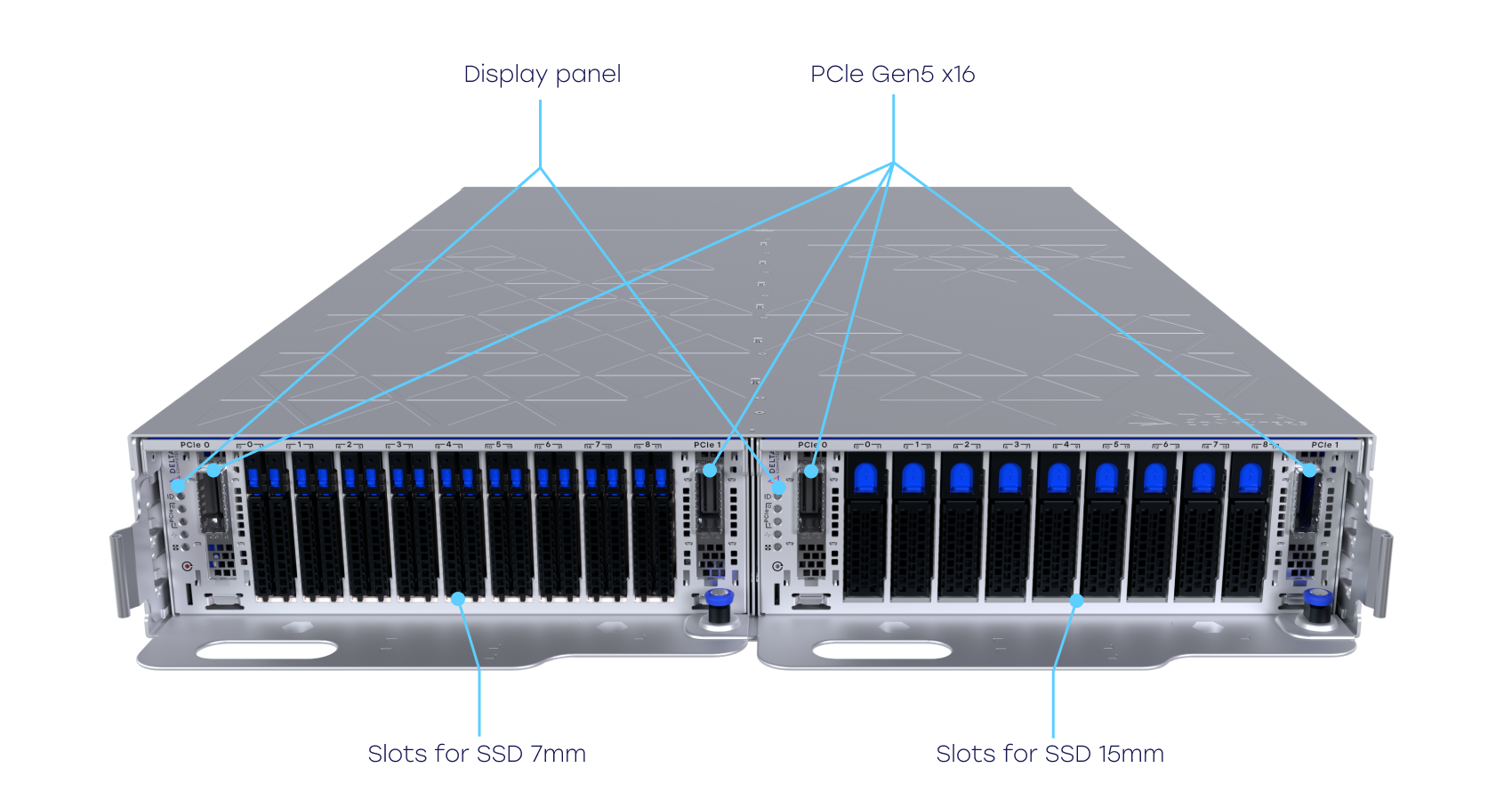

- Up to 36x U.2 NVMe SSD 7mm
- Up to 18x U.2 NVMe SSD 15mm
- SSD dual-port mode enables dual-controller storage scenario
- 2х PCIe Gen5 х16 HHHL
- Monitoring and management in the system
Delta BMC
and
Delta Sokol
Dual-Port
NVMe SSD
Up to 36 drives
U.2 NVMe to 2OU
Interface
Applications
Virtualization
Delta Marlin can be used for virtualization since the array provides high-speed data transfer via the advanced PCIe Gen5 protocol.
Large databases
Due to its high density, Delta Marlin is suitable for storing large databases, maximizing chassis Delta Akturu space utilization.
Artificial Intelligence and Machine Learning
The platform is designed to meet the high data rate needs of the AI and machine learning applications.
Use Cases
Standard
1х Delta Serval 1х block Delta Marlin
1х Delta Serval 1х block Delta Marlin
Storage system, up to 36 disks
2х Delta Serval 2х blocks Delta Marlin
2х Delta Serval 2х blocks Delta Marlin
Storage system, up to 72 disks
1х Delta Serval 1х Delta Sprut 4х blocks Delta Marlin
1х Delta Serval 1х Delta Sprut 4х blocks Delta Marlin
Advantages
High density
Up to 36 drives can be connected in a 2OU module
High speed data exchange
Connecting NVMe drives to the host via PCIe Gen 5th generation
Intuitive monitoring and control system
Monitoring and control are carried out using
Delta BMC
and
Delta Sokol
and
Delta Sokol
